JET GROUTING TRIPLEX PUMPS

Tecniwell high-pressure and medium-pressure pumps are designed and built following the most advanced construction standards in order to meet the many necessities that can arise on the worksite.

The main mechanical components are made using the best steel and heat treatments; the motor pumps’ design and construction are based on fundamental principles of simplicity and rationality.

Thanks to these construction features, Tecniwell pumps deliver top performances both in terms of reliability and durability.

Tecniwell high-pressure and medium-pressure provide operating pressures up to 900 bar and 2.600 lt/min (686 gpm) are available in versions from 150 to 1.000 hp.

Are driven by diesel engine, on request can be equipped with electric motor.

JETTING TRIPLEX PUMPS (diesel)

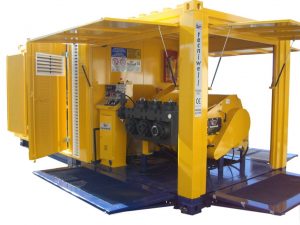

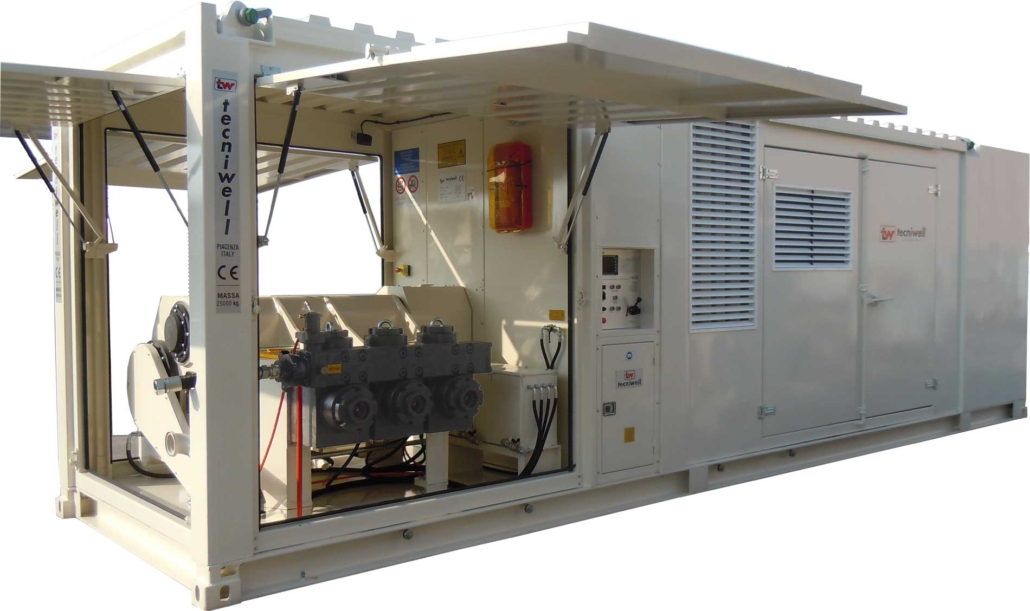

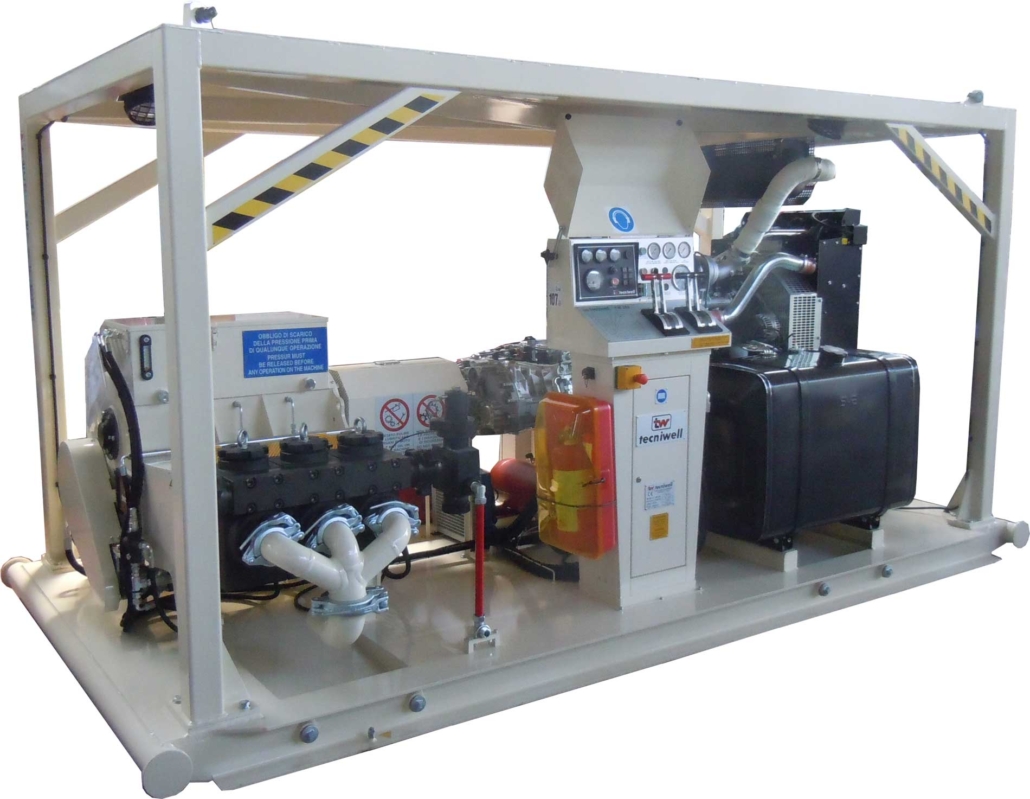

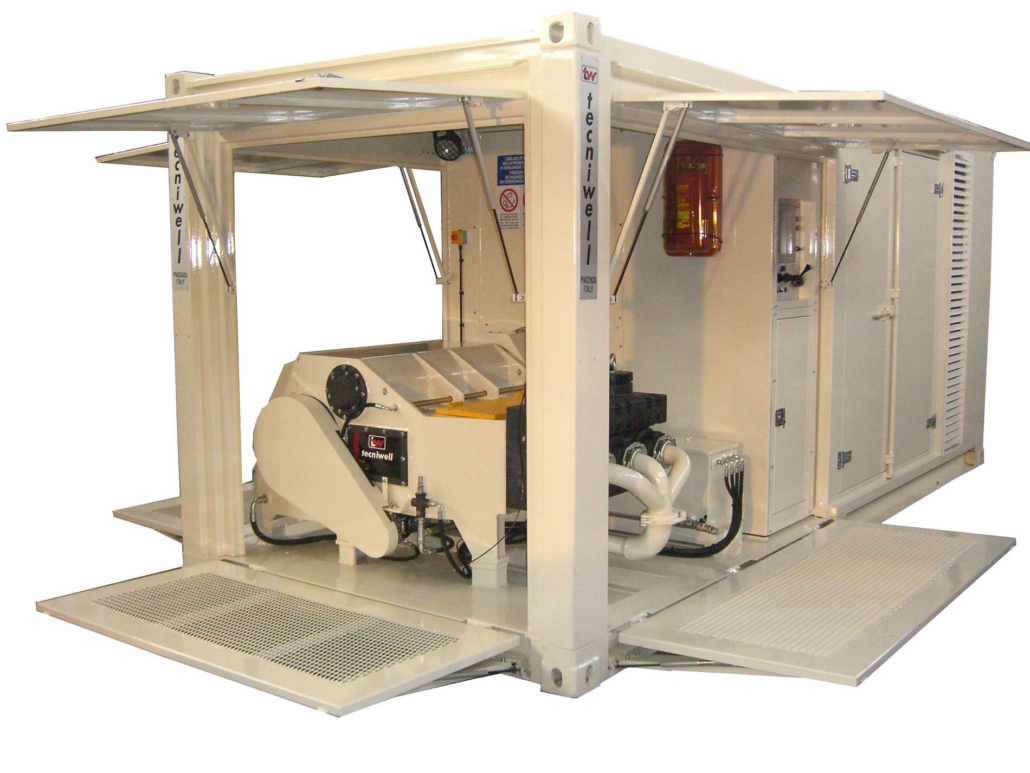

Model	TW100	TW200	TW355	TW400/S	TW500	TW600/V	TW600/V	TW600	TW600	TW800	TW1000
Engine	100 kW	180 kW	275 kW	368 kW	368 kW	450 kW	405 kW	450 kW	405 kW	565 kW	710 kW
Emission Standard	stg.V / 4final stg.IIIa	stg.V / 4final stg.IIIa	stg.V / 4final stg.IIIa	stg.V / 4final stg.IIIa	stg.V / 4final stg.IIIa	stg.IIIa	stg.V / 4final	stg.IIIa	stg.V / 4final	stg.V / 4final stg.IIIa	stg.V / 4final stg.IIIa
Piston Diam.	2 ”¼ to 3″½	3″ to 4″	2”1/2 to 4″	3” to 5″	3” to 5″	3” to 4″1/2	3” to 4″1/2	3” to 5″	3” to 5″	3″ to 5″	3″½ to 5″½
Stroke	4”	4”	5”	6”	5”	7″	7″	7”	7”	7”	8”
Max. Pressure bar(PSI)	400(5.800)	400(5.800)	800(11.600)	800(11.600)	800(11.600)	800(11.600)	800(11.600)	900(13.000)	900(13.000)	900(13.000)	900(13.000)
Max flow rate It/min(gpm)	285(75)	360(95)	400(105)	580(153)	625(165)	670(177)	670(177)	900(214)	900(214)	950(250)	1.400(370)

ELECTRIC INNOVATION

Tecniwell , in its commitment to greater environmental stability, has expanded its line of pumps with an electrically operated series, thus further consolidating its leadership in that sector.

An innovative mechanical gearbox/electric motor controlled by an inverter allows for use at maximum torque uniformity, which is characteristic of these motors, and gives unprecedented flexibility while further improving the traditional productivity and reliability of the tecniwell pumps.

As a result, these electric pump models can operate at high RPM very quietly and with minimal environmental impact. This fulfills, with great effectiveness, the growing need to reduce noise and emission pollution in all job sites, especially those in downtown areas.

A constantly expanding range…

ELECTRIC TRIPLEX PUMPS

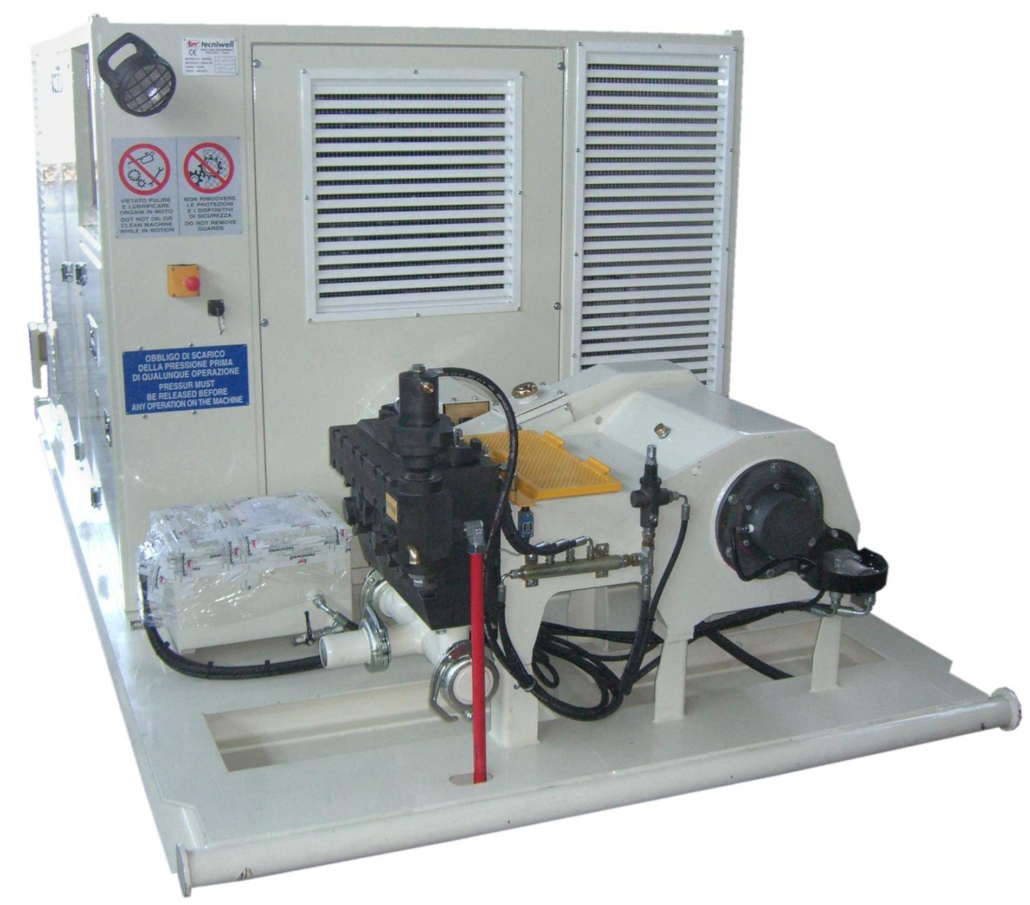

Model	TW100/E	TW250/E	TW400/E	TW600/VE	TW1000/E
Engine	90 kW	315 kW	315 kW	450 kW	560 kW
Piston Diam.	2″½ to 3″½	5″½ to 8″	4″ to 4″½	4” to 4″½	4″ to 6″
Stroke	4″	5″½	6″	7”	8”
Max. Pressure bar(PSI)	400(5.800)	110(1.595)	520(7.540)	490(7.106)	620(9000)
Max flow rate It/min(gpm)	285(75)	2.600(686)	580(153)	670(177)	1800(475)

MUD TRIPLEX PUMPS

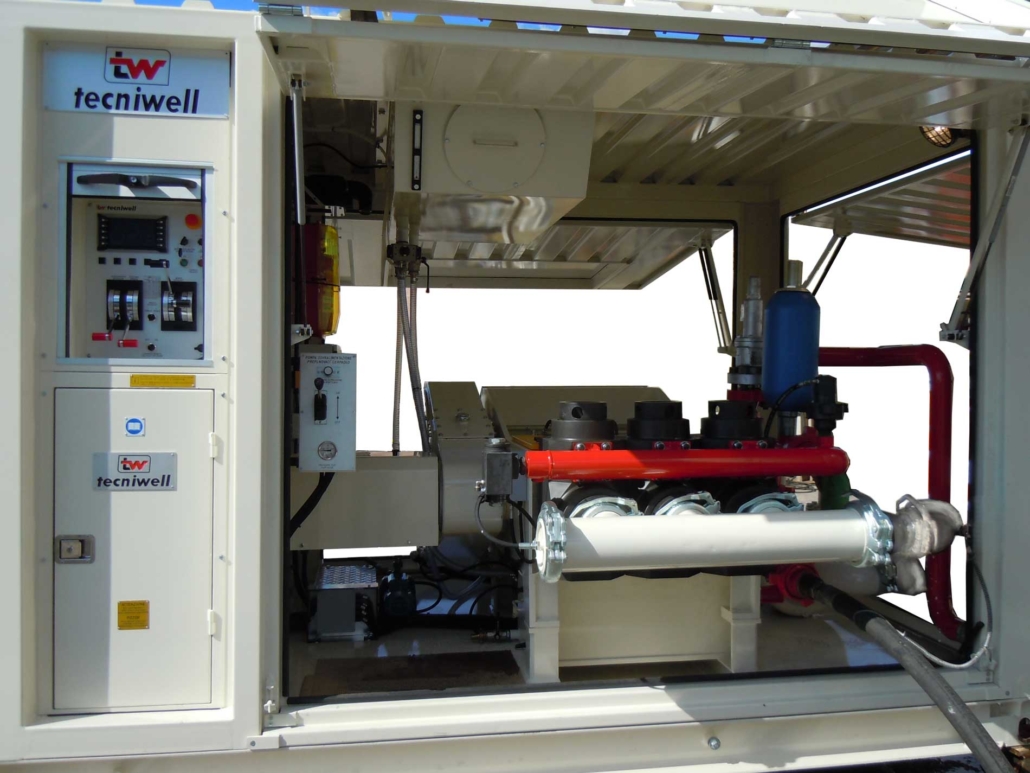

Model	TW150	TW250	TW250/E	TW708	TW800/M
Engine	150 kW	200 kW	315 kW	441 kW	565 kW
Piston Diam.	3″½ to 4″½	5″½ to 8″	5″½ to 8″	4” to 7″½	5″½ to 7″½
Stroke	4”½	5″½	5″½	8”	8”
Max. Pressure bar(PSI)	170(2.465)	130(1.885)	110(1.595)	370(5.365)	280(4.061)
Max flow rate It/min(gpm)	1.500(396)	3.100(819)	2.600(686)	2.400(634)	2.500(660)
