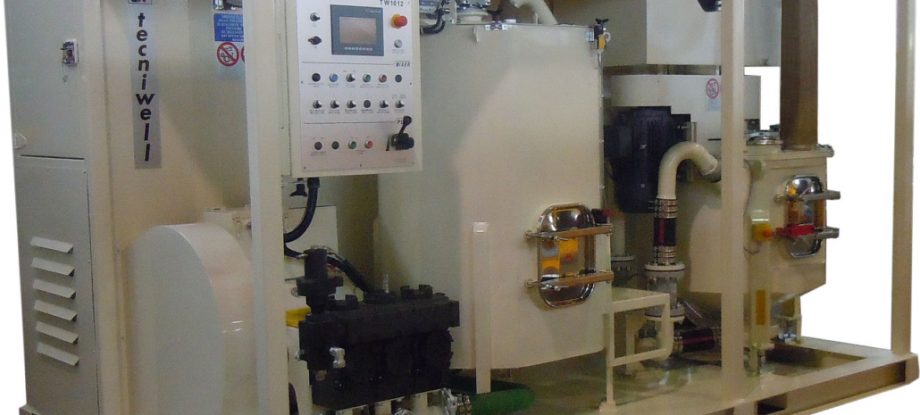

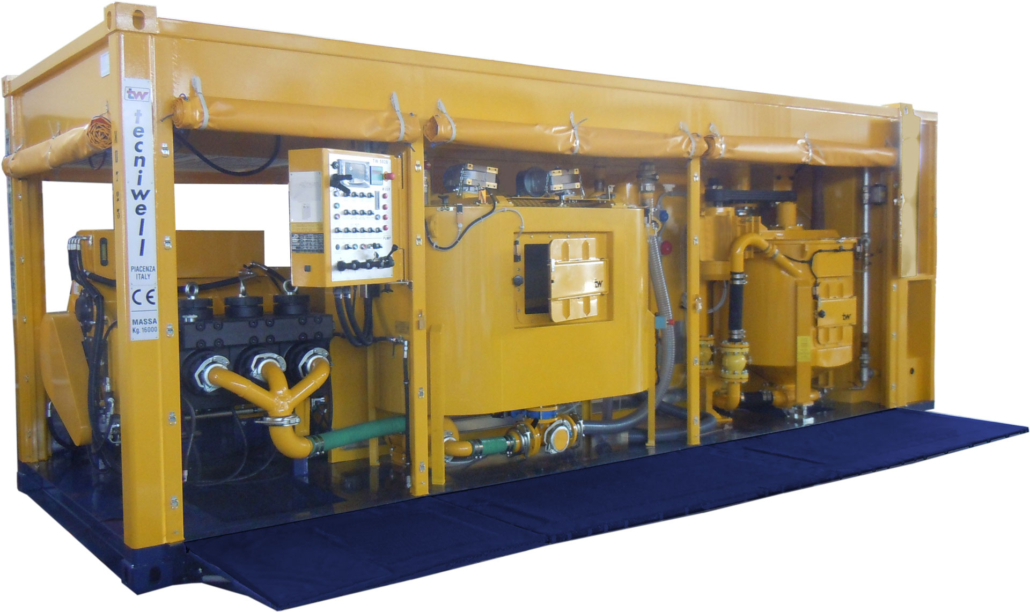

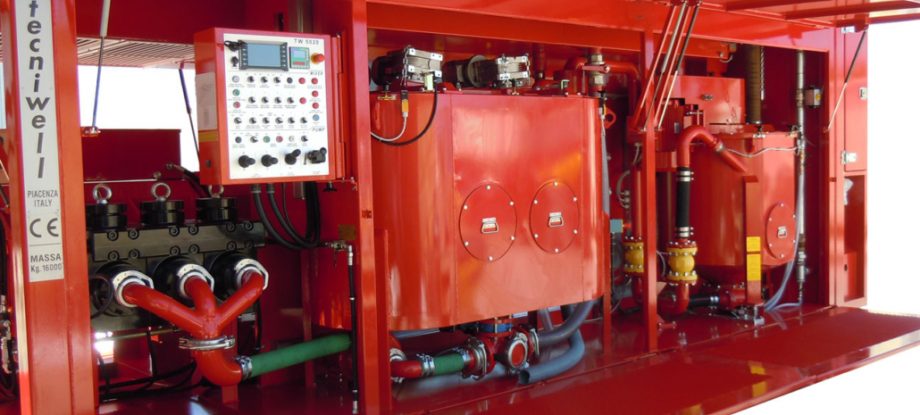

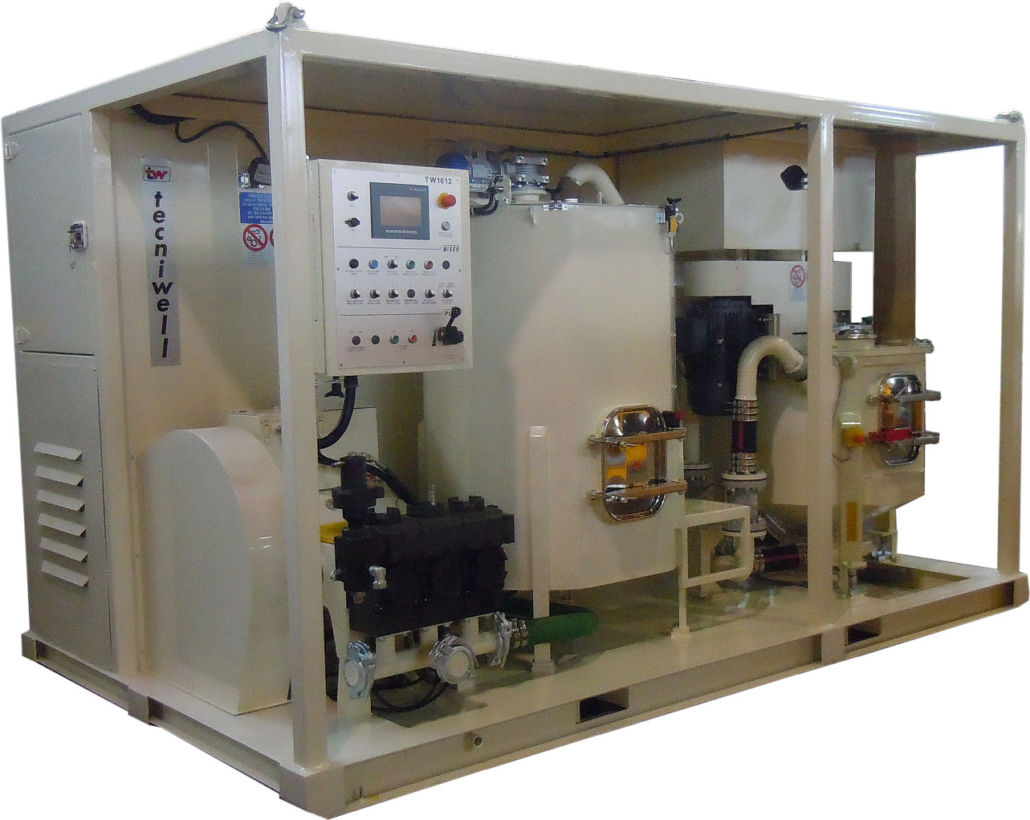

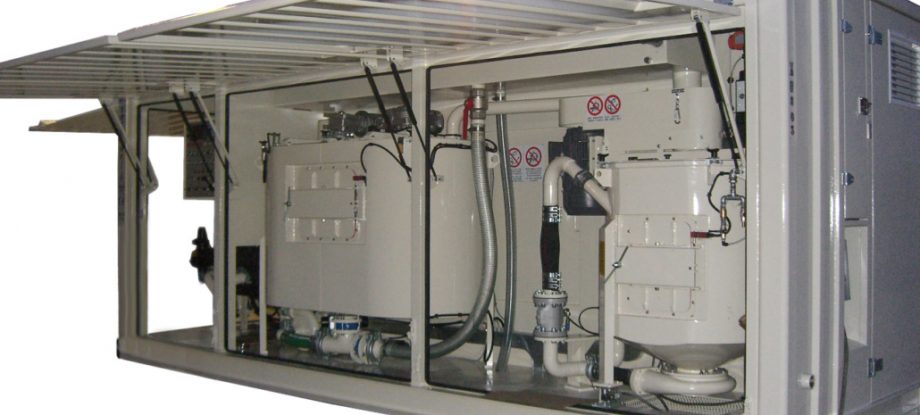

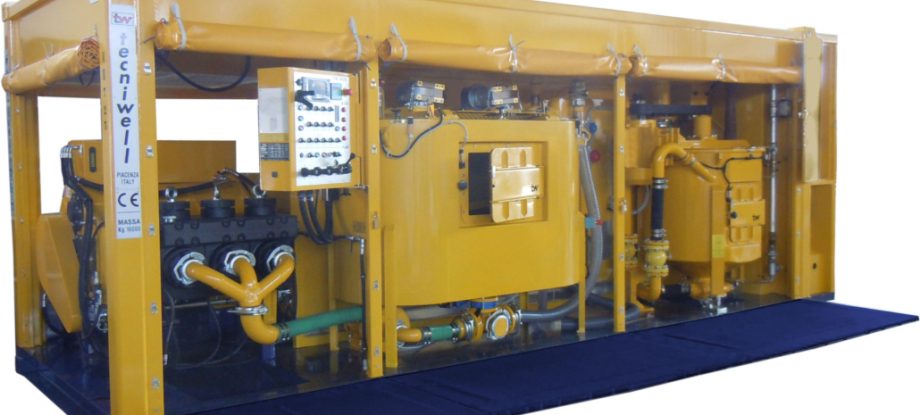

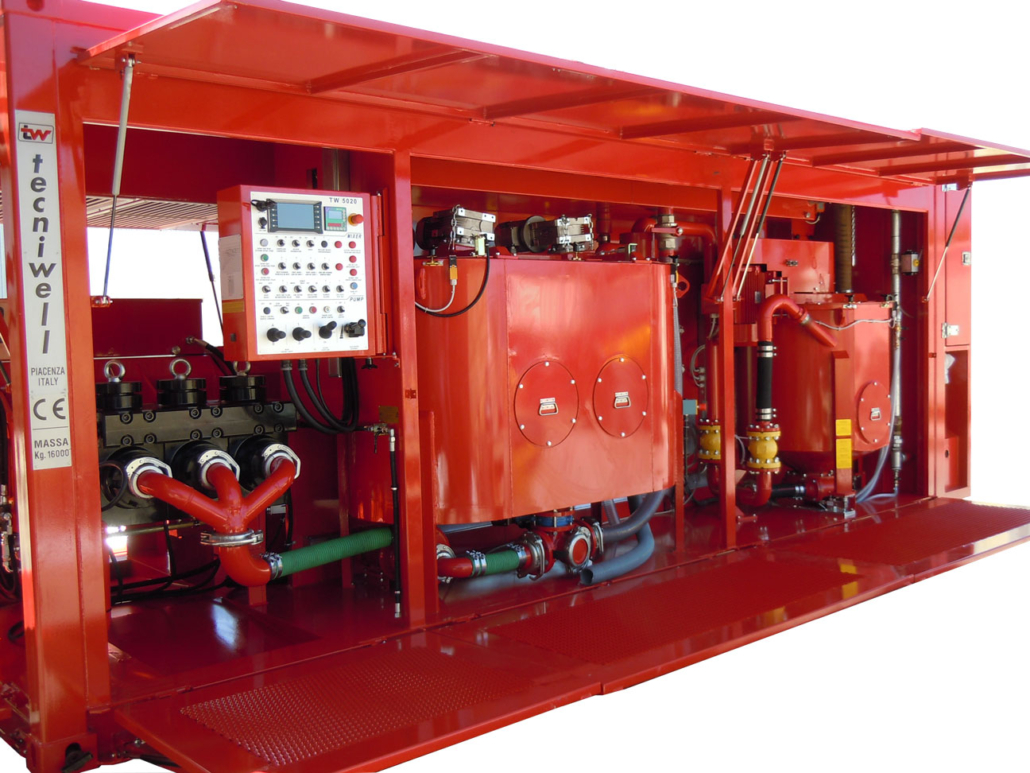

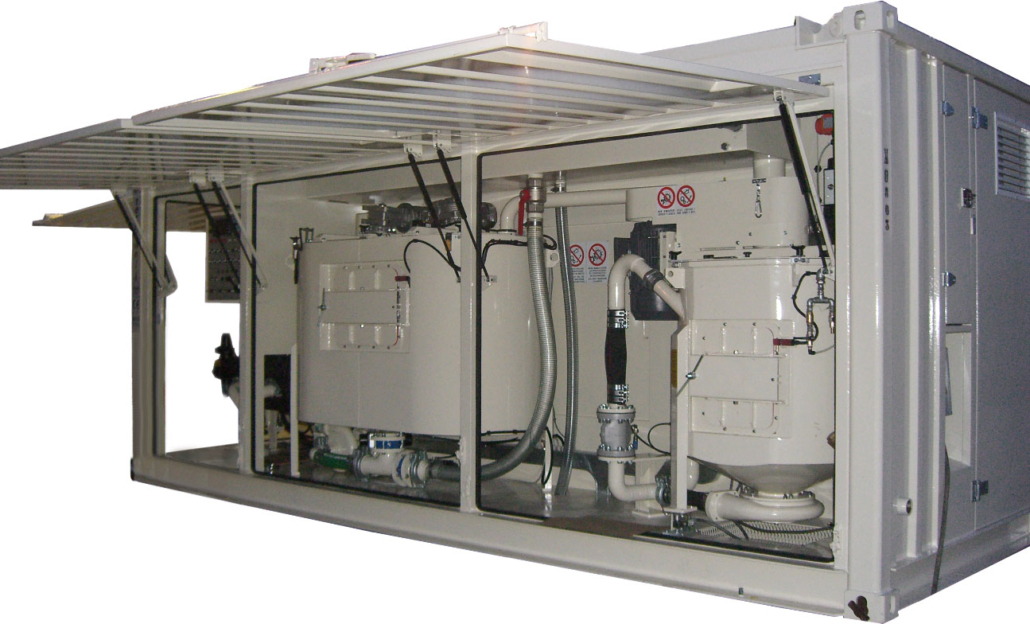

COMPACT JET-GROUTING UNIT

These are compact units for Jet-Grouting equipped with high-pressure triplex pumps and automatic mixer, all in one ultra-compact container and can be diesel-electric drive or fully electric.

Are the best solution for jobsites where available space is limited or where it is still necessary to reduce the overall dimensions.

Above these you can stack one or more of our horizontal silo to have up to 90 tons of concrete without taking up any other space.

A complete and independent Jet-Grouting site in only 16m2!

Model TW1012 TW2015 TW3520 TW4020 TW4020/E TW5020
Engine 90 kW electric 180 kW diesel 275 kW diesel 331 kW diesel 355 kW electric 368 kW diesel
Hourly production 12 m3/h53 gpm 15 m3/h66 gpm 20 m3/h88 gpm 20 m3/h88 gpm 20 m3/h88 gpm 20 m3/h88 gpm
Piston Diam. 3 ” to 4″ 3″ to 4″ 2”1/2 to 4″ 3” to 4″1/2 3” to 4″1/2 3” to 5″
Stroke 4” 4” 5″ 6″ 6″ 5″
Max Pressure Bar(PSI) 400(5.800) 400(5.800) 800(11.600) 800(11.600) 800(11.600) 800(11.600)
Max flow rate It/min(gpm) 370(97) 395(104) 400(105) 580(153) 580(153) 625(317)
